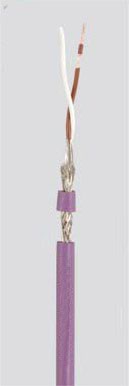

CAN bus0.25mm2 ,drag chain
|
| Type/Area of Application |
Drag Chain Applications |
Drag Chain Applications |
| Construction du câble |
1x2x0.25 mm2 (stranded) |
4x1x0.25 mm2 (stranded) |
| Inner Conductor Diameter 1: |
Copper, bare (AWG 24/19) |
Copper, bare (AWG 24/19) |
| Chef d'orchestre d'isolation: |
PE |
PE |
| Couleurs d'orchestre: |
white, brown |
white, brown, green-yellow |
| Echouage Element: |
Double conductor |
Star quad |
| Shielding 1: |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
| Shielding 2: |
- |
- |
| Total Shielding: |
Copper braid, tinned |
Copper braid, tinned |
| Outer Jacket Material: |
PUR |
PUR |
| Outer Diameter: |
6.2 mm ± 0.3 mm |
6.5 mm ± 0.3 mm |
| Outer Jacket Color: |
Violet similar to RAL 4001 |
Violet similar to RAL 4001 |
|
|
| Caractéristiques électriques |
|
| Impédance caractéristique: |
120 Ohm ± 10% |
120 Ohm ± 10% |
| Chef d'orchestre de résistance: |
85.0 Ohm/km max. |
85.0 Ohm/km max. |
| Insulation Resistance: |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
| Mutual Capacitance: |
50.0 nF/km nom. |
50.0 nF/km nom. |
| Test Voltage: |
1.5 kV |
1.5 kV |
|
| Poids: |
approximately 40.0 kg/km |
approximately 45.0 kg/km |
| Min. Bending Radius (Laying): |
90.0 mm |
95.0 mm |
| Operating Temp.Range, min.: |
- 20 °C |
- 20 °C |
| Operating Temp.Range, max.: |
+70 °C |
+70 °C |
| Caloric Load, approx. value: |
0.80 MJ/m |
0.94 MJ/m |
| Copper Value: |
18.0 kg/km |
25.0 kg/km |
|
| Applicable Standards: |
Profibus acc. to DIN 19245 T3 and EN 50170 |
Profibus acc. to DIN 19245 T3 and EN 50170 |
|
|
|
|
 |
|
